BILSTEIN TERRASPORT WITH 1.5″ LIFT KIT

RAV4 2019 – 2025

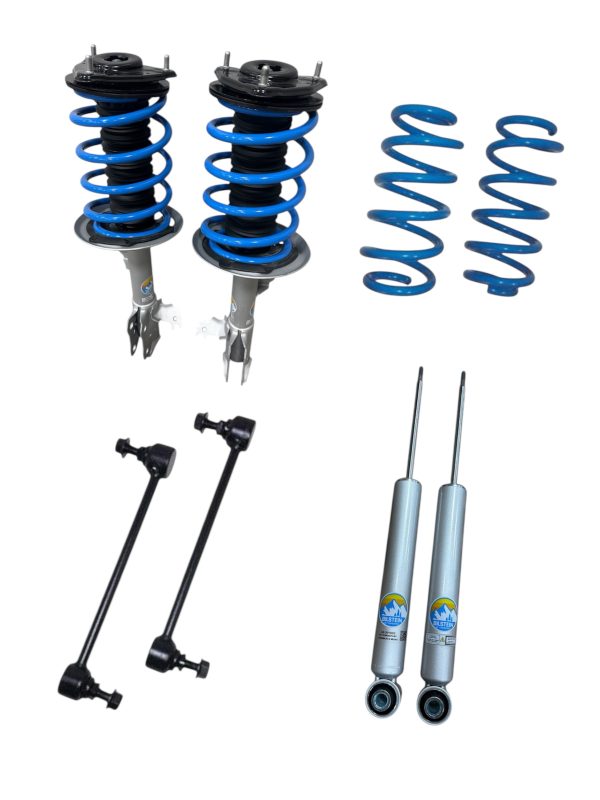

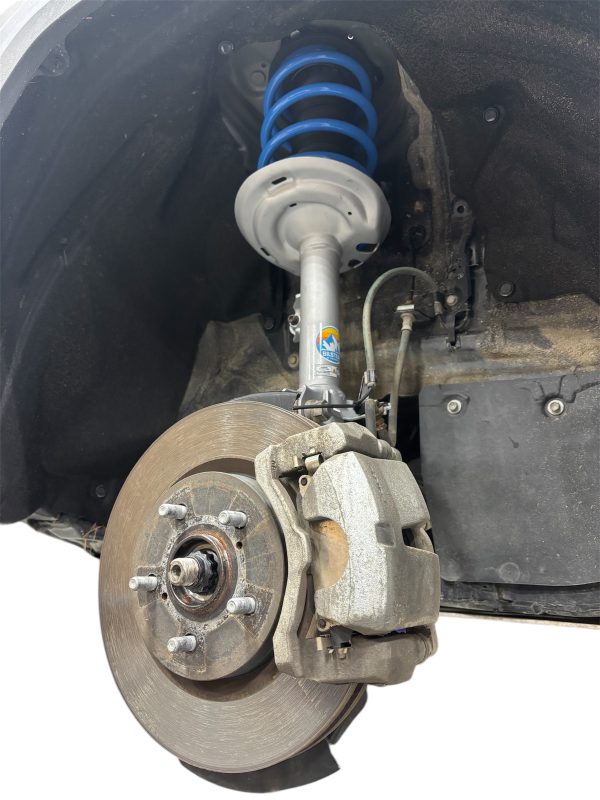

Northwoods Performance 1.5″ lift front strut set with the Bilstein B8 5100 series system, and our rear Northwoods Performance lift springs Bilstein shocks. Using Bilstein’s brand new B8 TerraSport struts with integral 1.5″ lifts to provide incredible handling both on the street and off road. The front struts are longer in the lower body, increasing the distance from the knuckle mount to the lower spring bucket, allowing the use of larger tires. The struts come fully assembled with our Performance Springs, ready for an easy installation. New sway bar links are also included, and all required mounting hardware.

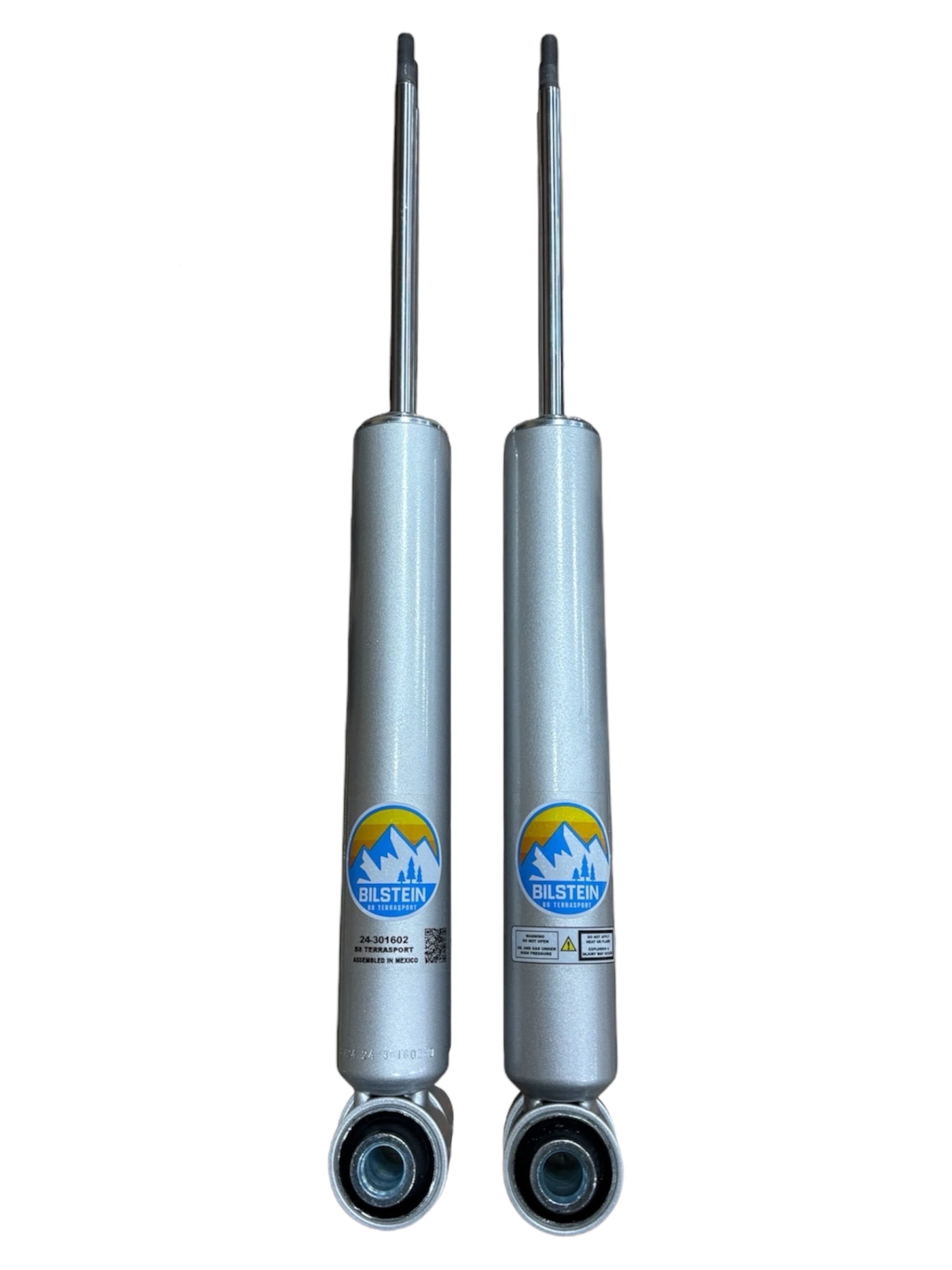

In the rear we include our rear lift springs, and a set of Bilstein B8 TerraSport rear shocks to complete the lift. With our springs you will realize over 1″ of increased rear wheel travel–its not just a spacer and shim lift.

Choose your rear spring rate to match your driving style:

STAGE 1—212# spring rate, provide 1.25”+ lift on non-hybrid vehicles. Recommend for LE, XLE when usually lightly loaded.

STAGE 2—212# spring rate, provide up to 1.5”+ lift on non-hybrids, 1.25” of lift on hybrids. Recommended for non-hybrids, heavier weekend loads and additional lift.

STAGE 3—250# spring rate, provide 2” lift on non-hybrids, 1.5”+ on hybrids. Recommended for hybrids and serious overlanders.

Reference rear spring rates: OEM LE/XLE non-hybrid rate = 188#. TRD rate = 212#

Amount of lift is approximate and will vary by vehicle. Lift will vary depending on model and submodel, factory and aftermarket accessories installed, and original ride height of vehicle.

**Not recommended for Prime models**

Bilstein has released the TerraSport system, but has not provided full production and stock. We are getting limited stock in from Bilstein and have have limited stock on hand. Call for availability!
